Description

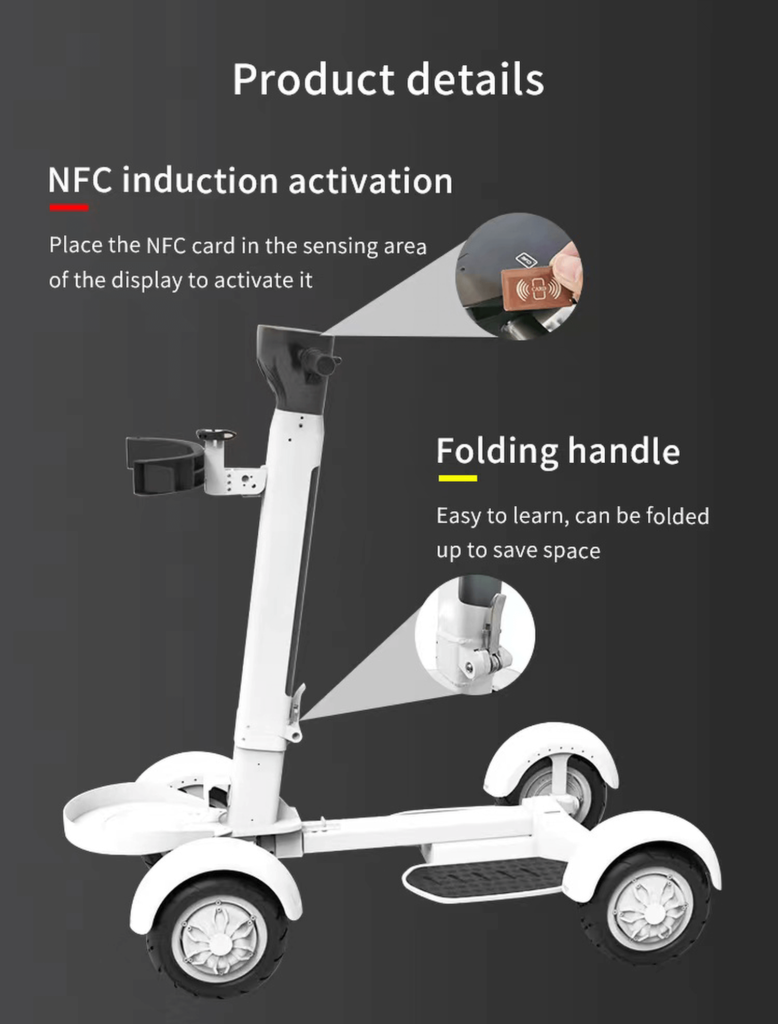

NFC Induction Activation
Place the NFC card in the sensing area of the display to activate it.
Folding Handle
Easy to learn，can be folded up to save space.

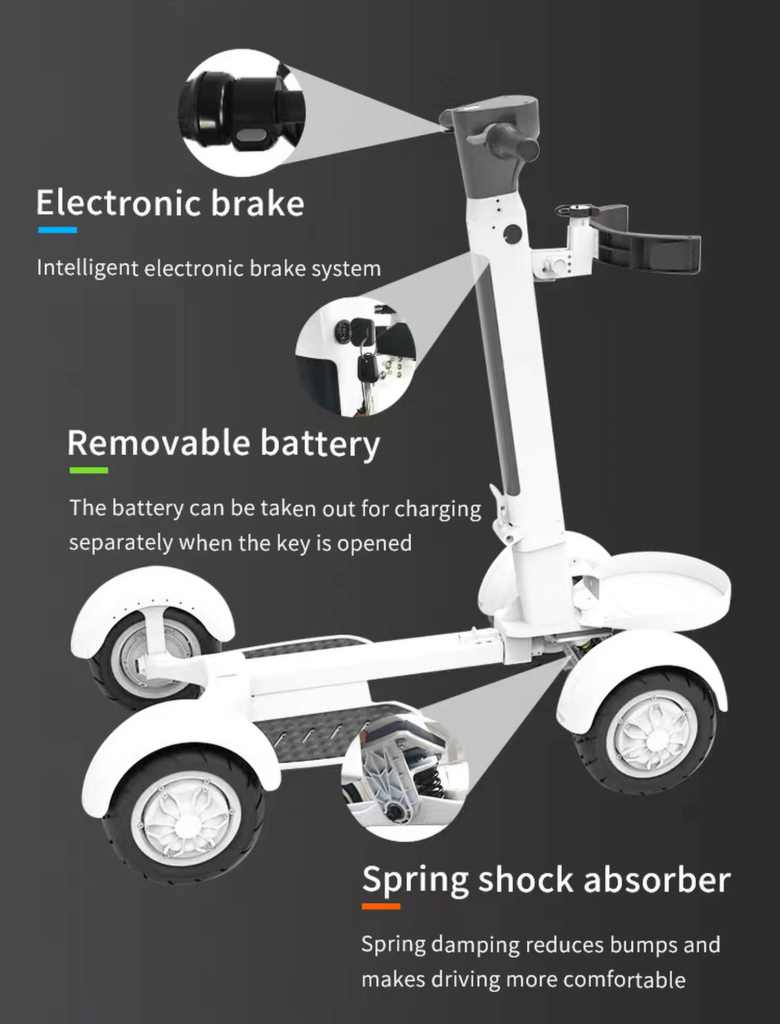

Electronic Brake
Intelligent electronic brake system.
Removable Battery
The battery can be taken out for charging separately when the key is opened.
Spring Shock Absorber
Spring damping reduces bumps and makes driving more comfortable.

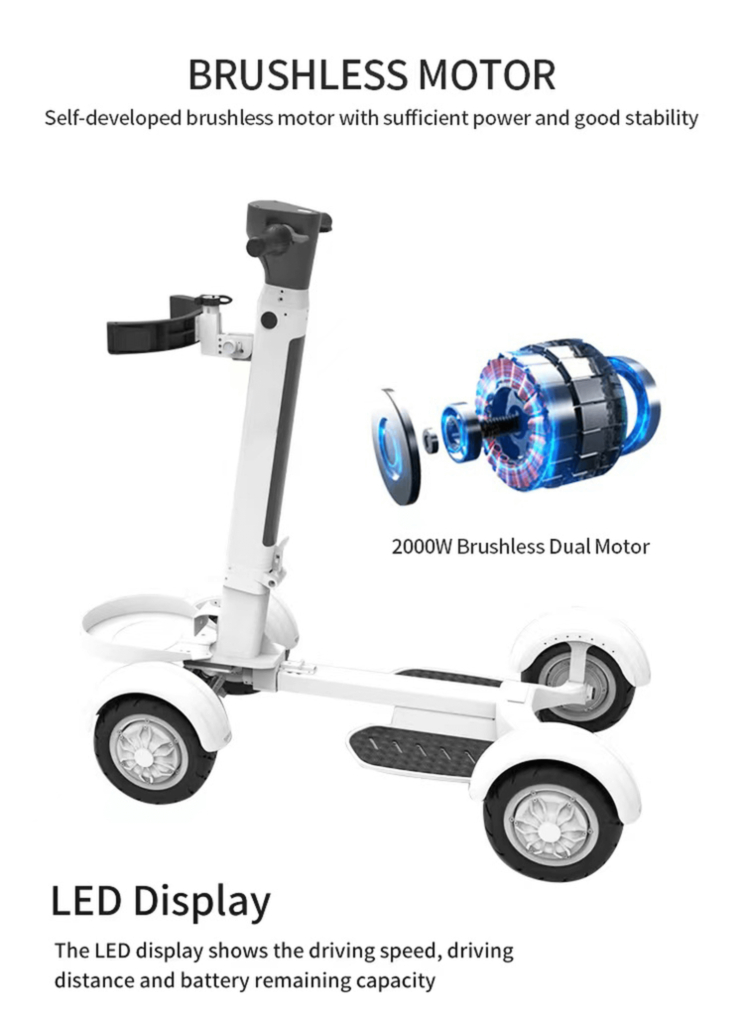

Brushless Motor
Self-developed brushless motor with sufficient power and good stability.

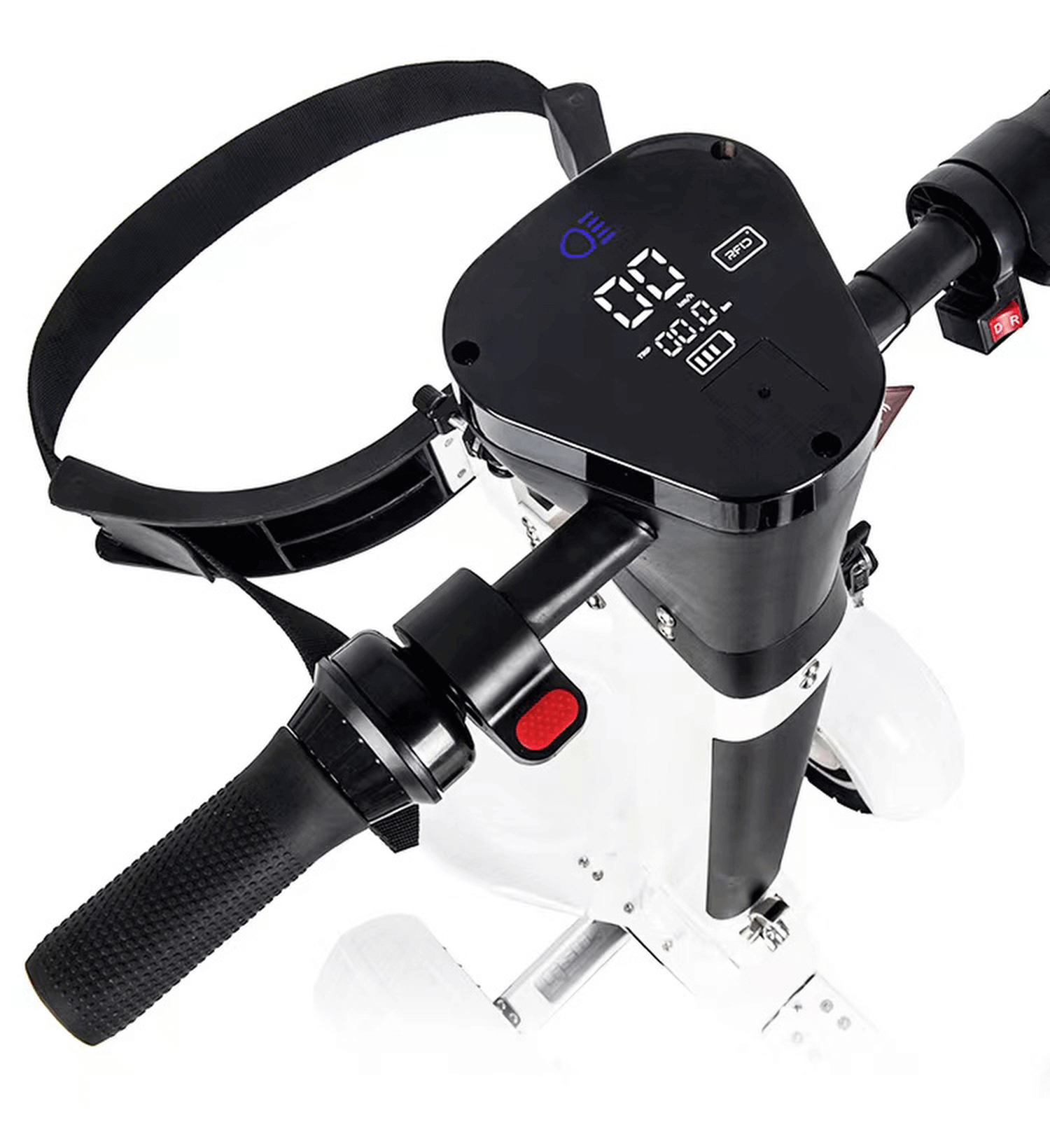

LED Display
The LED display shows the driving speed，driving distance and battery remaining capacity.
| NO. | Component Name | Accessory Name | Picture | Specifications | Material Quality | Quantity | Unit | Price/$ |
|---|---|---|---|---|---|---|---|---|
| 1 | Mudguard |  |
PP | 1 | Piece | |||
| 2 | Fender bracket |  |
A3 | 1 | Piece | |||
| 3 | Pedal |  |
Magnesium alloy | 1 | Piece | |||
| 4 | Rubber tread |  |
Rubber | 1 | Piece | |||
| 5 | Motor wire guard |  |
PP | 1 | Piece | |||
| 6 | Rear taillights |  |
Plastic | 1 | individual | |||
| 7 | Tail light fixing parts |  |
ABS | 1 | individual | |||

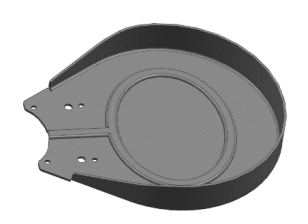

| 8 | Bag tray |  |
Aluminium | 1 | Piece | |||
| 9 | Controller outer tube |  |
Aluminium | 1 | Piece | |||
| 10 | Controller tube front axle connector |  |
Aluminium | 1 | Piece | |||
| 20 | Instrument components | Instrument bracket |  |
Magnesium alloy | 1 | Piece | ||
| 21 | Instrument IOT |  |
显示仪表/电子件 | Plastic | 1 | Piece | ||
| 22 | Instrument bracket adapter |  |
Magnesium alloy | 1 | Piece | |||
| 23 | Front and rear wheels | Electrical machinery |  |
48V1000W | Aluminium | 2 | Set | 720 |
| 24 | Front wheel hub | 10寸 | Aluminium | 2 | Set | 320 | ||
| 25 | Inner and outer tires | 10寸 | Rubber | 4 | Set | 220 | ||
| 26 | Motor pressure block |  |
Aluminium | 4 | Set | |||
| 27 | Handlebar cover |  |
φ22（一长一短） | Rubber | 1 | Set | ||
| 28 | Revolving bell |  |
φ22 | Plastic/Iron | 1 | Piece | ||
| 29 | Rotating accelerator |  |
Plastic | 2 | Piece | |||
| 30 | Front axle components |  |
1 | Set | ||||
| 31 | ||||||||
| 32 | ||||||||
| 33 | ||||||||
| 34 | ||||||||
| 35 | ||||||||
| 36 | ||||||||
| 37 | ||||||||
| 38 | ||||||||
| 39 | ||||||||
| 40 | ||||||||
| 41 | Battery components | Battery box |  |
48V14AH (LG电芯) | Aluminium | 1 | Set | |
| 42 | Battery components | Battery box |  |
48V10Ah(国产电芯) | Aluminium | 1 | Set | |
| 43 | controller |  |
48V50A | 1 | Set | |||
| 44 | Outer tube on battery box |  |
Aluminium | 1 | Set | |||
| 45 | ||||||||
| 46 | ||||||||
| 47 | ||||||||
| 48 | ||||||||
| 49 | ||||||||
| 50 | ||||||||
| 51 | ||||||||
| 52 | Front ball bag fixing aluminum parts |  |
Aluminium | 1 | Piece | |||
| 53 | Folding aluminum parts for front ball bag | Aluminium | 1 | Piece | ||||
| 54 | Lower ball bag support plate | A3 | 1 | Piece | ||||
| 55 | Ball bag bracket |  |
PP | 1 | Piece | |||
| 56 | Bag holder buckle | PP | 2 | Piece | ||||
| 57 | Bundle strap | Braided tape | 1 | Piece | ||||
| 64 | Charger | 54.6V 2A | 1 | Set |
